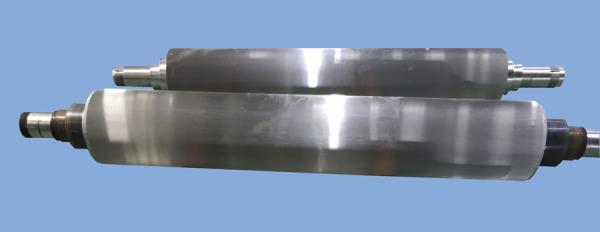

F Flute Hard Chrome Alloy Steel Corrugating Rolls for Good Printing Make-up Packaging

1. Strict Selection High Quality Material

Good raw material is an important factor in high quality of corrugating roll. We select the best raw material manufacturer in China. With high strength and toughness, good hardenability, no obvious temper brittleness, 50CrMo alloy steel is specialized material for manufacturing corrugating rolls. Our raw material shell thickness is more than 70mm, the thicker shell can reduce deformation and keep stability during production.

2. High Hardness from Vertical Quenching Process

Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-12mm. With harder base material as foundation, the lifetime of our corrugating rolls are greatly extended. After different heat treatment process, the corrugated roller surface becomes more wear-resistant and durable. Some manufacturers groove their lower rollers before the rollers’ were harden, because it is relatively easy to work with soft materials. By this could cause problems in the later heating process for the rollers, which will make the hardness of the rollers change. After heating treatment we cut slots of lower roll though this process needs more time but makes uniform hardness.

3.Follow our suggestion to clean the alloy steel corrugating rolls well

⇒ Don’t wash the corrugating rolls directly when the rolls are hot.

⇒ After the corrugating rolls cool down, wash the rolls by water or gas.

⇒ Clean the glue and paper scraps on corrugating rolls after production to avoid scratches of coatings.

⇒ After cleaning, apply silicon oil on corrugating rolls.

Contact me:

Bonnie Li

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
