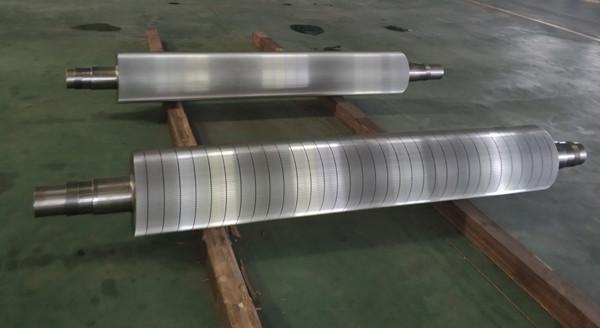

Tungsten Carbide B flute Corrugated Roller Steam Heating Single Facer

Introduction:

-The largest professional corrugated roller manufacturer in northern of China

-50CrMo refined forging steel supplied by the best manufacturer in China.

-A, C, B, E, F, G, N flute corrugated rolls

-Tungsten carbide corrugated roll and hard chrome corrugated roller

-American Praxair JP8000 HVOF tungsten carbide plating equipment

-American Praxair super-hard 1342 tungsten carbide powder

-Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58.

-High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

-We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement.

-Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property

-Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

Heating is very important for high speed. Heat well, Speed faster.

A. Start the corrugating rolls before filling in steam to avoid abnormal deformation.

B. Check the temperature of corrugating roll and pressure roll regularly to avoid temperature decrease caused by accumulation of condensate water.

C. If the temperature is abnormal, please check and keep the correct position of siphon to let condensate water out successfully.

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
