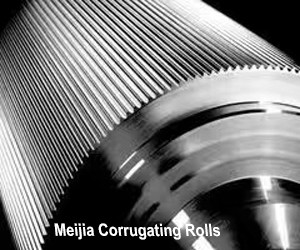

B Flute Corrugation Machine Parts Tungsten Carbide Corrugated Rolls
1. Features of Tungsten Carbide Corrugating Roll
a. Tungsten carbide corrugated roller has excellent wear resistance
and low flute height. Moreover, it will not reduce the compressive
strength of the finished corrugated board. A more optimized v-shape
flute profile can be designed to increase the strength of the
cardboard, reduce the amount of the glue applied and save
corrugated paper.
b. Tungsten carbide corrugated roller will never wear in theory,
and can ensure the production of high quality finished corrugated
board’s durability
c. The service life of tungsten carbide corrugated roller can reach
at least 35 million meters, reducing the number of maintenance and
replacement times, saving manpower, material and financial
resources.
d. Tungsten carbide roller’s wear resistance is good, and it’s
tungsten carbide coating adopts special removing process, so
corrugated roller substrate can not be damaged, and corrugated
roller can be used for many times with repairing.
B Flute Corrugation Machine Parts Tungsten Carbide Corrugated Rolls
2. Introduction
-The largest professional corrugated roller manufacturer in
northern of China
-50CrMo refined forging steel supplied by the best manufacturer in
China.
-A, C, B, E, F, G, N flute corrugated rolls
-Tungsten carbide corrugated roll and hard chrome corrugated roller
-American Praxair JP8000 HVOF tungsten carbide plating equipment
-American Praxair super-hard 1342 tungsten carbide powder
-Medium frequency quenching heating treatment machine makes the
hardness of base steel more than HRC58.
-High precision and high performance CNC grinding machine equipped
with Germany Siemens control system.
-We design the flute profile according to customer’s medium paper
GSM, speed, FCT requirement.
-Tungsten carbide corrugated roll lifetime is 3-5 times longer than
hard chrome roll because of its excellent wear-resisting property
-Our corrugated rollers has been exported to many countries such as
Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
3. Precision index of corrugated packaging machinery parts corrugating rolls
| Item | Index |
| Gear teeth height limits of deviation | ≤ 0.01mm |
| Addendum circle run out tolerance | ≤ 0.02mm |
| Gear teeth width limits of deviations | ≤ 0.015mm |
| Tooth profile limits of deviations | ≤ 0.01mm |
| Gear lateral face counter shaft parallelism | ≤ 0.01mm |
| Tip cylinder element linear | ≤ 0.01mm |
| Gear teeth division limits of deviations | ±10" |
| Smooth finish | Ra<0.6µm |
Flute Profile
Almost every set of corrugating rolls are needed to be designed and
customized separately according to the width, diameter, flute
height, corrugated paper GSM, speed and cardboard physical index
requirement.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
