E Flute Hard Chrome Plated Alloy Steel Corrugating Rolls Inner Suction

1. Strict Selection of Alloy Steel Corrugating Rolls Material

50CrMo alloy steel in China is supplied by best manufacturer in China. Adequate raw material in warehouse can guarantee the delivery time for our orders.

2.Precision Welding Make Inseparable

The roll barrel and shafts shrink fit together. After welding do tempering to reduce stress. We do steam leak detction.

Intermediate frequency quenching machine.


Polishing machine

3. Flute profile

The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirement such as good FCT, saving paper, etc. Our engineer has rich experience of designing flute profile. Without good design, many problems will appear, such as flute paper broken, low speed, collapsed flute, high-low flute and so on.

The following table is just for a reference.

4. Heat well

A. Start the corrugating rolls before filling in steam to avoid abnormal deformation.

B. Check the temperature of corrugating roll and pressure roll regularly to avoid temperature decrease caused by accumulation of condensate water.

C. If the temperature is abnormal, please check and keep the correct position of siphon to let condensate water out successfully.

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

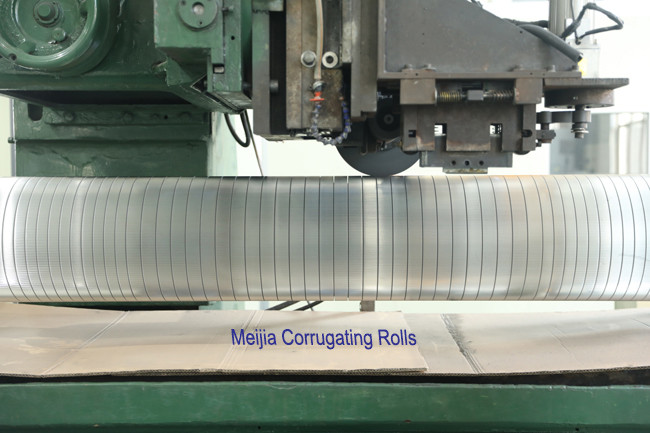

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
