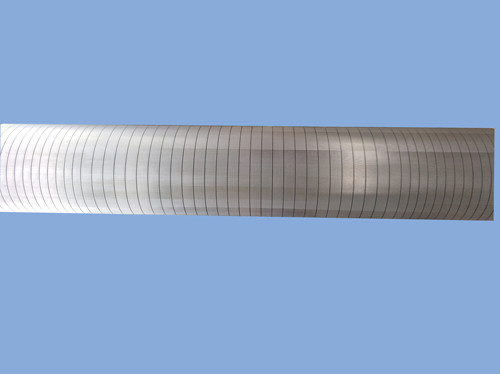

Chinese Corrugator Hard Chrome Plated Corrugated Roller E Flute
Hard chrome corrugated roll:
| Product name | Corrugating rolls, corrugated roller |
| Material | 50CrMo |
| Application | Single facer, corrugator machine |
| Diameter | 200-600mm |
| Width | 1000-2800mm |
| Flute Profile | A, C, B, E, F, G, N, O |
| Heating Treatment | Intermediate frequency quenching treatment |
| Hardness | ≥HRC58 after heating treatment, harden layer 8-12mm |
| Coating | Tungsten carbide, hard chrome 0.06-0.08mm |
| Corrugator line | BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc. |
Clean well
1. Don’t wash the corrugating rolls directly when the rolls are hot.
2. After the corrugating rolls cool down, wash the rolls by water or gas.
3. Clean the glue and paper scraps on corrugating rolls after production to avoid scratches of coatings.
4. After cleaning, apply silicon oil on corrugating rolls.
Goode design for crown to solve paperboard problems.
If the camber of corrugating roll is designed irrational, it will cause uneven local pressure, which leads to a series of problems such as poor lamination, inner liner frothing, heavy scoring on inner liner, corrugating paper rippling etc.
|
|
