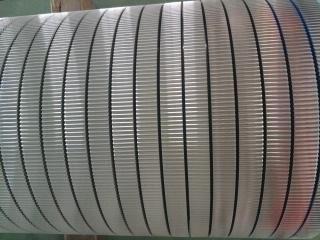

Hard Chrome Plating Traditional Corrugating Roll For Corrugator
Machine
Introduction
--The largest professional corrugated roller manufacturer in
northern of China
--50CrMo refined forging steel supplied by the best manufacturer in
China.
--A, C, B, E, F, G, N flute corrugated rolls
--High Speed can reach to 200m/min
--Hard Chrome 0.06-0.08mm
--Medium frequency quenching heating treatment machine makes --the
hardness of base steel more than HRC58 and harden layer 8-12mm.
--High precision and high performance CNC grinding machine equipped
with Germany Siemens control system.
--We design the flute profile according to customer’s medium paper
GSM, speed, FCT requirement. The flute profile is more reasonable,
suitable to customer’s machine
--Our corrugated rollers has been exported to many countries such
as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
--Supply corrugated rollers for all kinds of corrugator line such
as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian,
TCY, Champion, West River, Mingwei and so on.
Heat well
A. Start the corrugating rolls before filling in steam to avoid
abnormal deformation.
B. Check the temperature of corrugating roll and pressure roll
regularly to avoid temperature decrease caused by accumulation of
condensate water.
C. If the temperature is abnormal, please check and keep the
correct position of siphon to let condensate water out
successfully.
Flute Profile
Almost every set of corrugating rolls are needed to be designed and
customized separately according to the width, diameter, flute
height, corrugated paper GSM, speed and cardboard physical index
requirement.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
