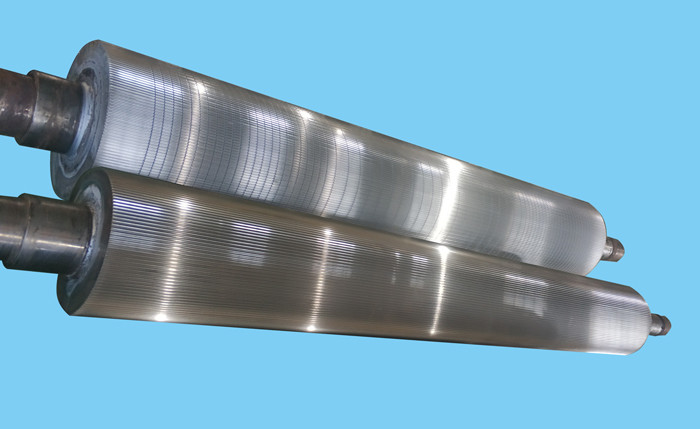

B Flute Hard Chrome Plating Traditional Corrugating Roll Wear Resistant Roll

Appliation:

Corrugating roll is one of the most important components in corrugated carton production. Usually, it is an essential part of single facer. Corrugating rolls consist of two parts: upper roll and lower roll. The lower corrugating roll is the driving roll, which is generally fixed while the upper one is the driven roll.

Adjust well

1. Inspect the balance of corrugating roll regularly, at least once a month.

2. Inspect the gap among corrugating roll, glue roll and pressure roll to avoid abrasion.

3. When installing corrugating rolls, mind the small gap between corrugating rolls and suction hood which will cause abrasion of corrugating rolls and aluminum plate from suction hood.

4. The copper knives will loosen with the movement of machine. The knife in “T” position will scratch the coating on two sides of grooves. So fix the cooper knives regularly.

5. In the premise of assuring corrugated board quality in real production, it’s better to use smallest oil/air cylinder pressure both of corrugating roll and pressure roll.

6. When changing wide width to small width in real production, reduce oil/air cylinder pressure both of corrugating roll and pressure roll accordingly to avoid abnormal abrasion caused by excessive pressure. Especially the direct abrasion between corrugating rolls and pressure roll in paperless areas will cause falling off of coatings.

Strict Test to Keep Improving

Before and after the surface treatment including tungsten carbide plating or hard chrome coating of corrugating rolls, it is needed to check the size, hardness, precision, flute profile, and simulation feeding paper. Special projector is used to check the flute profile and feeding different GSM paper to ensure the performance of corrugating rolls.

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
