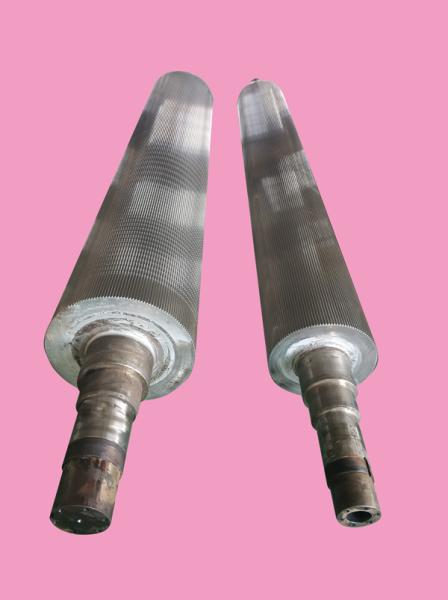

1800mm Width Tungsten Carbide Corrugating Roll for Wanlian Single Facer SF20

Introduction:

-The largest professional corrugated roller manufacturer in northern of China

-50CrMo refined forging steel supplied by the best manufacturer in China.

-A, C, B, E, F, G, N flute corrugated rolls

-Tungsten carbide corrugated roll and hard chrome corrugated roller

-American Praxair JP8000 HVOF tungsten carbide plating equipment

-American Praxair super-hard 1342 tungsten carbide powder

-Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58.

-High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

-We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement.

-Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property

-Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

Store well

1. Store in dry places.The surface of corrugating rolls is not compact structure. The permeation and corrosion of water and steam will cause unusual falling off of coating.

2. Apply silicon oil. The silicon oil is valid for 3 months. If you don’t use corrugating rolls for a long time, silicon oil must be applied to the rolls regularly to avoid unusual falling off of coatings caused by the permeation and corrosion of water and steam.

3. Keep the surface clean. If you put the corrugating rolls in the warehouse, the surface should be cleaned and applied silicon for later use.

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Contact me:

Bonnie Li

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
