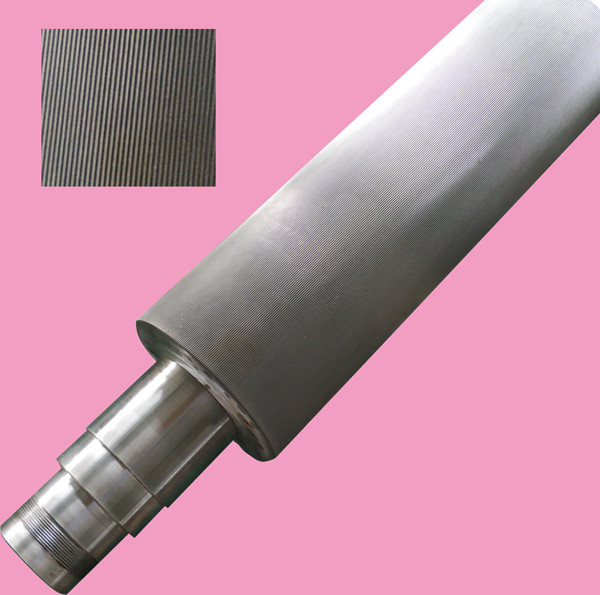

G Flute Corrugated Hard Chrome Plated Roller for Indian Single
Facer
Introduction:
--The largest professional corrugated roller manufacturer in northern of China
--50CrMo refined forging steel supplied by the best manufacturer in China.
--A, C, B, E, F, G, N flute corrugated rolls
--High Speed can reach to 200m/min
--Hard Chrome 0.06-0.08mm
--Medium frequency quenching heating treatment machine makes --the hardness of base steel more than HRC58 and harden layer 8-12mm.
--High precision and high performance CNC grinding machine equipped with Germany Siemens control system.
--We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine
--Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
--Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.
High Hardness from Vertical Quenching Process
Intermediate frequency quenching can guarantee both the hardness
and harden depth we need. Our harden layer depth can reach to
8-12mm. With harder base material as foundation, the lifetime of
our corrugating rolls are greatly extended.
Intermediate frequency quenching machine.
Flute Profile
Almost every set of hard chrome plated rollers are needed to be
designed and customized separately according to the width,
diameter, flute height, corrugated paper GSM, speed and cardboard
physical index requirement.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
Precision Index of Hard Chrome Corrugated Roller
| Item | Index |
| Gear teeth height limits of deviation | ≤ 0.01mm |
| Addendum circle run out tolerance | ≤ 0.02mm |
| Gear teeth width limits of deviations | ≤ 0.015mm |
| Tooth profile limits of deviations | ≤ 0.01mm |
| Gear lateral face counter shaft parallelism | ≤ 0.01mm |
| Tip cylinder element linear | ≤ 0.01mm |
| Gear teeth division limits of deviations | ±10" |
| Smooth finish | Ra<0.6µm |
