Hard Chrome C flute Corrugated Rollers for XinGuang Corrugator Related Spare Parts
1. Hard chrome corrugated roll:
♦ 50CrMo alloy steel refined forging, barrel wall thickness ≥70mm
♦ Adopt advanced heat treatment technology, quenching hardness ≥HRC58
♦ Precision machine to do multi-layer process
♦ Hard chrome thickness 0.06-0.08mm,
♦ Lifetime more than 8 million meters
♦ A,C, B, E,F G, N flute
2. Flute Profile
Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |

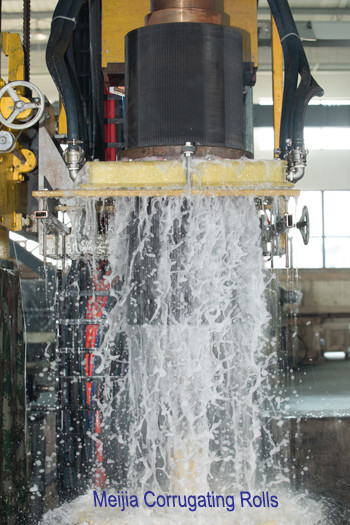

3.High Hardness from Vertical Quenching Process
Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-12mm. With harder base material as foundation, the lifetime of our corrugating rolls are greatly extended. After different heat treatment process, the corrugated roller surface becomes more wear-resistant and durable. After heating treatment we cut slots of lower roll though this process needs more time but makes uniform hardness.
.
|
|
