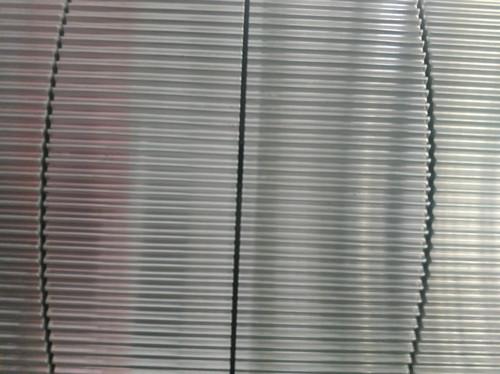

Good Printability E flute Corrugated Roller Tungsten Carbide Spraying

1.High Hardness from Vertical Quenching Process

Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-12mm. With harder base material as foundation, the lifetime of our corrugating rolls are greatly extended. After different heat treatment process, the corrugated roller surface becomes more wear-resistant and durable. Some manufacturers groove their lower rollers before the rollers’ were harden, because it is relatively easy to work with soft materials. By this could cause problems in the later heating process for the rollers, which will make the hardness of the rollers change. After heating treatment we cut slots of lower roll though this process needs more time but makes uniform hardness.

Intermediate frequency quenching machine.

2.Durable from Supersonic Tungsten Carbide Spraying

Tungsten carbide corrugated roller producing technology is different traditional corrugated roll. Because of the particularity of tungsten carbide material, the requirement of the base material hardness is higher, flute profile before tungsten carbide spraying is more precise, which is needed to match the performance of tungsten carbide. Spraying technology is the key, which can ensure the hardness and binding force of tungsten carbide.Most advanced Praxair JP 8000 HVOF tungsten carbide spraying equipment and technology is adopted and Praxair 1342 super hard tungsten carbide powder is used for our corrugating roll. Before tungsten carbide spraying, we do sand blasting treatment on the surface which make rough surface to increase adhesion of tungsten carbide powder.

American Praxair Tungsten Carbide Plating equipment.

Praxair 1342 super hard tungsten carbide powder

3.Repeatedly Polished, Smooth As a Mirror

Meijia adopts special polishing crafts, such as the corrugated rollers use America Praxair 1342VM series super hard tungsten carbide roller, special customized polishing wheel. With our company’s fully automatic CNC corrugated roller producing process’s special polishing machine and our independent grinding polishing technology R&D, the tungsten carbide roller’ s surface finish degree can reach Ra<0.6μm, which will improve the accuracy of the flute profile, and make sure the quality of the corrugated roller.

Test flute profile with computer and projector.

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
