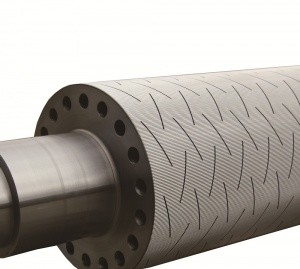

Steam Heating TC E flute Corrugated Roller Corrugated Cardboard
Making Machine
Introduction
-The largest professional corrugated roller manufacturer in
northern of China
-50CrMo refined forging steel supplied by the best manufacturer in
China.
-A, C, B, E, F, G, N flute corrugated rolls
-Tungsten carbide corrugated roll and hard chrome corrugated roller
-American Praxair JP8000 HVOF tungsten carbide plating equipment
-American Praxair super-hard 1342 tungsten carbide powder
-Medium frequency quenching heating treatment machine makes the
hardness of base steel more than HRC58.
-High precision and high performance CNC grinding machine equipped
with Germany Siemens control system.
-We design the flute profile according to customer’s medium paper
GSM, speed, FCT requirement.
-Tungsten carbide corrugated roll lifetime is 3-5 times longer than
hard chrome roll because of its excellent wear-resisting property
-Our corrugated rollers has been exported to many countries such as
Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
Heating well is important to the speed and paperboard quality. Pls
follow our suggestion.
A. Start the corrugating rolls before filling in steam to avoid
abnormal deformation.
B. Check the temperature of corrugating roll and pressure roll
regularly to avoid temperature decrease caused by accumulation of
condensate water.
C. If the temperature is abnormal, please check and keep the
correct position of siphon to let condensate water out
successfully.
Flute Profile
Almost every set of corrugating rolls are needed to be designed and
customized separately according to the width, diameter, flute
height, corrugated paper GSM, speed and cardboard physical index
requirement.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
