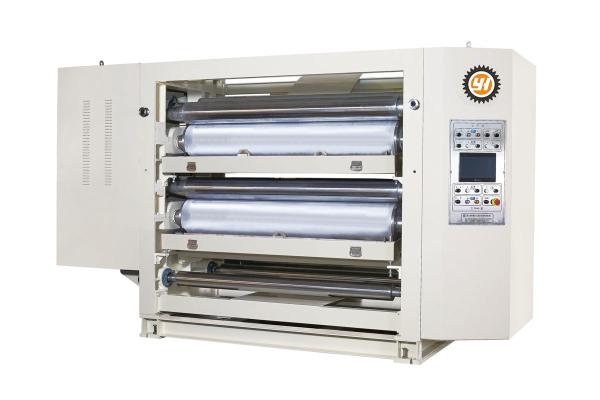

Functional Characteristics

Functional Characteristics

• Stratification independent drive for precise synchronization
• Traditional composite plastic machines are mechanical synchronization or frequency synchronization by the above two methods in actual use are lower than the absolute synchronization effect, it will waste a lot of paste and reduce the production rate, affecting the quality of cardboard , factory using unique differential synchronizer way synchronization ensures consistent paste on any case conditions. Compared to other manufacturers, 20% -30% amount of paste can be saved
• Glue roll is processed by cobwebbing, save paste and avoid splash. All rotation rolls are processed by dynamic balance
• Paste gap control and roll gap width can be adjusted by the button in PLC, also can be automatically adjusted with line speed though PLC. Paste tray is pneumatic lifting, easy for cleaning and maintenance
• Pasting angel will be designed according to the site, to make sure the paste is applied onto the corrugated tooth tip
• The gap between the press roller and the pasting wheel can be automatically switched by the servo motor or manually.
• Press roll with rotation function

Technical Parameters

• Technical Parameters

• Maximum mechanical speed: 450M/min, maximum production speed: 400M/min
• B-Glue line within 1.2mm,C-Glue line within 1.5mm.
• Siemens PLC
• “Kunlun general state” display
• German gear reducer
• PHYSIS servo motor and servo Drive 12kw
• "Fulong" synchronous belt
• Siemens servo motor and servo Drive for paste control/roller pressing
• The main drive (sizing roller/control roller) uses an Italian PHYSIS servo motor and servo drive.

Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength.

Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.

All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.

Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
